Smart lock locks smartly

When we were robbed a few months ago, we were left with two possible stories for how the burglar got in - we came home to find both a window and door unlocked. Since we are pretty convinced the window was locked from the inside, our suspicion is that this happened on one of the rare unlucky days that one of us left the house without locking the front door. It happens once every few months. We needed to take steps to make sure that couldn't happen any more, rare though it was.

And so, despite the relatively new keyless lock already installed on our front door, we decided to upgrade. Our first keyless lock had no motor - we had to manually turn the deadbolt. We selected it for that feature. Fewer moving parts meant less to break and longer battery life. Now however, we wanted something that would automatically lock if we forgot.

Schlage's touchscreen model will do that, and will sync with a home wireless hub, if we eventually decide to further turn our home into something out of the Jetsons (yay internet of things).

Not too many parts - by now we are pros at installing locks:

It also helped that the manual was very easy to understand, even providing "actual size" pictures of the parts to help distinguish between the various screws and bolts:

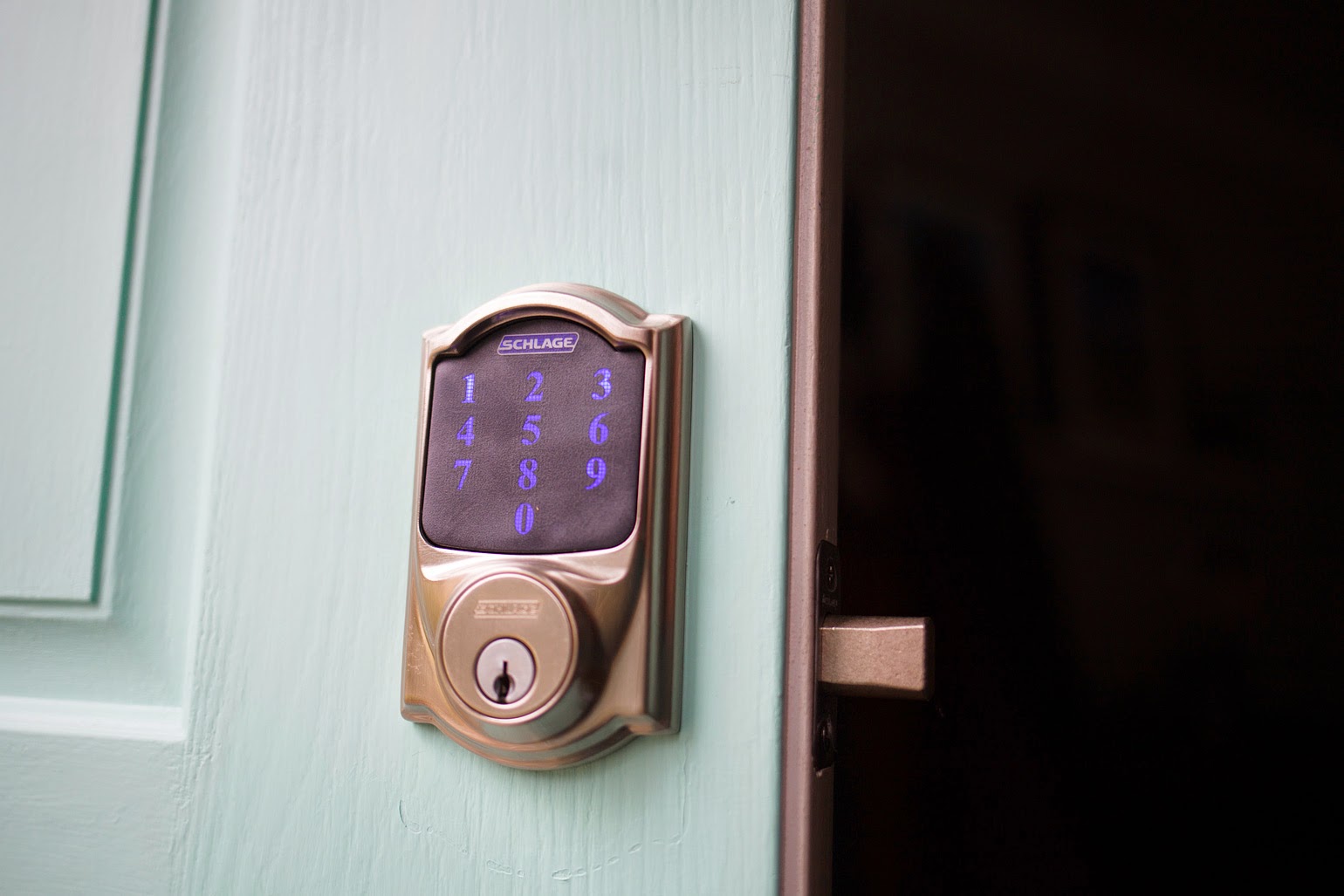

The outside number panel is smaller than our old one, which we had to install before the previous paint job on the door had fully set (because, you know, we needed to be able to lock the door) so it was time to pull out the paint:

I can still see the vague outlines of the old model about an inch below the new one, but I don't think it bothers me enough to get out the sand paper and really even it out. It's practically invisible in this picture:

Inside, the opposite is true. The new lock takes up much more space than the old one, because of the motor. Here's the old - a simple toggle:

 Then the new one, with the wire coming out, halfway through the installation:

 And finally, the finished look:

Not really thrilled about how it looks, but it works. We activated the option auto-lock feature, will turns the bolt after 30 seconds. As we expected we would, sometimes now we try to close the door after the deadbolt has been extended, i.e. if the door is open for more than 30 seconds. I'm sure we're going to create a nice gash in the wood trim until we get used to it. But it's worth it for the peace of mind knowing that the door is locked when we're away from home. We've also set an additional safety features by creating longer entry codes, to make it harder for someone trying to guess. As before, we have a few different codes that use all the numbers on the keypad, to prevent someone from being able to guess based on wear/finger prints over only a few digits. Anything to make our house less appealing as a target.

Some new wireless hubs are expected out later this year, better than the current models, so soon we might even be able to check our home's status on the internet.

Cold and Wet

About a year after our washing machine stopped washing, our old Kenmore electric dryer (110.62972101) stopped drying (with a full load of wet laundry, of course, because how else do you find out a dryer isn't working...). The motor and drum were still working - but the heating element was not doing anything. Fortunately we have lots of drying racks (and our house is very dry in the winter) so we were not immediately screwed. But with a very messy baby, the laundry pile grew very fast.

So we were left with three choices: buy a new dryer, call in a repairman, or fix it ourself. It would take a week to deliver a new one and over a week to get a repairman. A replacement would cost over $800 and the repairman was $65 to show up and $20 for every 15 minutes after that. Parts extra. I would guess at least an hour to fix. So with parts, approaching $200 for repairing a very old machine.

So we decided to spend a day or two trying to Google-fix the dryer and if that failed, we would order a new one.

Googling suggested a few things that were easy to check: first that the fuse partially blew and second was that the exhaust vent was clogged. Dryers have a thermal fuse sensor that stops the dryer if the heat gets too high. But the vent was flowing just fine (which we expected, since we'd recently cleaned it out). Next we opened up the bottom front panel to check a series of fuses and sensors that control the temperature of heating element and when it turns on. Opening it up was easy to do since I had done it a couple of times already.

There were a couple of sensors immediately visible after removing the shield.

I believe the left sensor is the aforementioned thermal fuse, which tests whether the exhaust air is getting too hot (i.e. the vent may be clogged). I think the right sensor is a cycling thermostat which controls how long the heating element is left on. After pulling the plug on the dryer (220 volts!), I disconnected one wire each from the sensors and checked for continuity with my multimeter. But these two and the two I found jammed way on the inside next to the heating coil were all fine. So next I checked the heating coil, which was hidden behind an annoying-to-remove metal panel. After a fair amount of swearing I had it visible.

Unfortunately this was also working just fine. I was left with a series of difficult to check things: maybe the motor was not sending power to the heating element. Or perhaps one of the electric panel switches was not sending the right signal. Checking the motor would be really hard because it is located behind the ducting for the exhaust. Checking the switches at the top of the dryer would be scary because they would require the power to be connected. I made one brief attempt to check continuity at the heat switch, but quickly gave that up after a live wire accidentally brushed another piece of metal (nowhere near me!) and gave off a huge spark.

Mess of wires underneath the controls

I was resigned to order a new dryer when I realized that the switch that controls the heat is identical to the switch that controls whether the dryer should run or not.

So I just swapped the two switches and was happy to find out that now the dryer would only run if you held down the "Start" button. After holding the button down for a few seconds it was obvious that the heat was working! So I overnighted a new switch from Amazon and after a few minutes of swapping wires, we had a functional dryer again.

The culprit

2 hours and $20, not bad!

Data, feedback, and results

Back in December, I told you we got a real-time energy monitor, so I thought it might be useful now, 3 months later, to tell you how it's been working. Right away, we became more aware of what appliances used the most energy. We could tell when we could look at spikes on the graph and recall: "Oh yeah, that's when I did laundry." "Or oh right, that was the day the heat had to crank on a lot because it was so cold." It has gotten to the point where I can come home from work and ask D what was different that the morning, because our usage was higher than normal by $.20. This actually happened today - we usually use about $.65-.75 before I get home for the day. But today the monitor read $.92 cents - it turned out he started the dishwasher before he left.

We realized that the largest amounts of energy usage came from the dryer, by far, followed by the water heater. And even little things made a noticeable spike. The space heater we run in the bathroom 15 minutes before the little one's bath time cost money. Weekends, when were at home with lights on and the furnace churning, cost more. So we made some small adjustments.

First, we decided to stop drying her diaper liners. We use cloth diapers and wash them every third day. The hot water usage is unavoidable but the dryer was the real culprit for expenses. We have enough diapers that we could let them air dry. Especially in the winter when it's so dry out. So we did that and quickly noticed less energy usage. We still dry our regular laundry (well, we usually do, but our dryer just died...more on that next time, hopefully with good news) but just not the diapers.

Second, we realized we were spending a lot of money heating water. And while I certainly wasn't going to stop taking hot showers (hot, by the way, being about 115 degrees max), or buy a more efficient water heater, we decided to stop running the hot to wash our hands - mostly because the hot water very rarely made it to us in time anyway, and it was unnecessarily causing the water heater to crank up.

Finally, all of this added awareness has resulted in us being even better about turning off lights when we leave the room. We usually did it anyway, but now we see that each cent of electricity counts.

In all, we actually have managed to significantly lower our usage since we started. It's hard to compare figures across years because last year at this time, I was home all day with a newborn. And the year before that, we weren't doing tons of laundry and dishes and keeping the house heated more. But we definitely feel like the awareness has resulted in bills about 10% lower. And it's been fun. It will be interesting to see how our bill changes once we start having to turn on the AC...I'm a little scared to find out.

Babyproofing, part 3

More babyproofing! These are a few small things we've done that were much easier than the gate installsWe also put a few bumpers onto some corners, but not many. Since my preference for furniture tends to be for rounded edges anyway, we didn't have that many corners we felt were particularly hazardous. I mean, she's a baby. They bounce and heal quickly, right? The only corners we protected are the ones on the piano that are just above eye level and seem to come out of nowhere if you're as short as a baby. In fact, I already witnessed that one in action the other day when she walked into it and ricocheted off with just a little grunt. Baby-proofing success!

We also padded the very sharp corner of my nightstand. We may have to do the dining room table once she's a little taller.

(For anyone wondering that is an Ikea Spoka night light.)

The gate in the basement is finally up - just tension mounted since we will always be down there with her, this is just to make sure she can't zip into the unfinished basement and eat bike chain grease, kitty litter, and tiny nuts and bolts while our back is turned. It has a cat door because we wanted to make sure the cats could enter and exit easily with a full bladder or whatever (they can jump a gate but we wanted to definitely ensure they would have no problems on their way to their bathroom). She is fascinated by the little door and likes to open and close it. Fortunately she can't latch it.

Another door that fascinated her? The one to the fireplace...Easy fix - we just used the locks we originally put in the kitchen. It's a much better use, since we obviously aren't opening that up very often.

Next we still have to attach her wardrobes to the wall, since they are so big and heavy. We are going to hold off mounting the rest of the furniture until we see if she's a climber or not. So far, she is pretty cautious and seems to want to keep both feet on the ground. The other baby-proofing we're pondering is something to keep her from squashing her fingers in her drawers. They are easy-glide and so quick to close if she leans into them that if her fingers are in the wrong place, they will get badly stuck.

One solution seems to be putting piping insulation on one or more edges to keep the drawers from closing completely. That just seems like an invitation for her to play with insulation foam, and I'm not sure I like that idea. Plus she would be able to pull them off easily (or we could apply them with adhesive but then they would possibly damage the furniture). The other, more cruel option, is just to let her do it a few time and learn not to. She already has managed to accidentally squash her fingers in the sliding doors of our bedroom closet and in the piano fall board (did you know that had a name? I didn't until I just looked it up). Maybe this is all part of the learning process?
